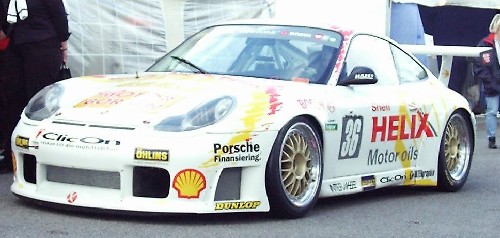

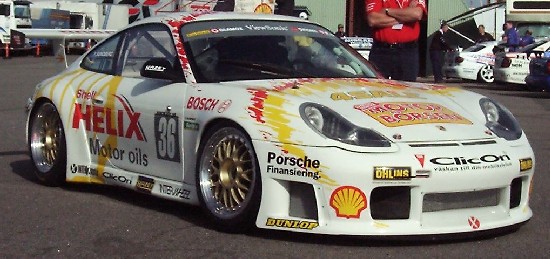

Porsche 911 GT3R For year 2000
Vehicle Description
(according to 1999 ACO Le Mans Regulations)
Engine
- six cylinder boxer engine
- 3600 cc 76.4 mm. stroke, 100mm bore
- maximum torque 380 Nm @ 7000 rpm
- power 300 KW (410 HP) @ 8200 rpm with 43.1 mm restrictor
- maximum rpm 8500
- water cooled with oil heat exchanger
- dry-sump lubrication
- intake system with six throttle valves
- Bosch MS 3.1 fuel injection with detonation control
- exhaust manifold open, without catalytic converter
- 108 RON octane leaded fuel
Power Train
- six speed manual transmission type G96/61 with oil cooler
- cable controlled gear shift mechanism
- rear wheel drive
- single mass flywheel with racing clutch
- limited slip differential -- 40/65%
- gear ratios (as delivered)
- ring and pinion 7/35
- 1st gear 13/41
- 2nd gear 20/40
- 3rd gear 25/29
- 4th gear 29/36
- 5th gear 32/33
- 6th gear 35/30
Bodywork
- revised 996 chassis with front and rear composite fender flares
- composite front nose, front fenders, front and rear hood, doors, rear
tail and rear lid
- aerodynamically optimized front nose and rear tail
- welded-in safety roll cage
- racing bucket seat (driver only)
- six-point seat belt/harness
- MOMO steering wheel
- fire extinguisher
- 100 liter FT 3 safety fuel cell
- air jacks
- plastic door, side and rear windows
Suspension
- electrically actuated power steering
- McPherson front suspension with ball joints
- multilink rear axle with ball joints
- coil spring with adjustable ride height and rate
- Bilstein adjustable shock absorbers
- wheels three piece BBS
- front - 10" X 18"
- rear - 11" X 18"
- Pirelli rain tires
- front 265/645 X 18
- rear 295/680 X 18
- center lock hubs/wheels
- front roll bar adjustable in five positions
- rear roll bar adjustable in three positions
- drive shafts with CV joints
Brake System
- twin pedal system with two master cylinders and balance bar
- internally vented brake discs
- front - 380mm diameter
- rear - 355 mm diameter
- no ABS
Electronics
- Bosch MS 3.1 engine management
- Stack display with integrated data recording (data recording device:
optional)
- lap trigger over Stack display
- 12V 50 Ah battery
- alternator 110 amp
Vehicle weight
Approximately 1,100 kg (2442 lb.) per Le Mans Regulations
Delivery December through March
2000
Color Exterior and interior Biarritz white
Z2
- Options
- Guards red G1
- Black A1
- Speed yellow X4
Optional equip.
All data as of August 1999. All data subject to change
without notice.
All previously published technical data and prices no longer valid. Vehicles cannot
be registered for public road use.
Conformity to regulations:
Each customer is responsible for the vehicle to fully comply with
the respective regulations.
The vehicles will be delivered in their basic version being in accordance with the 1999
ACO Le Mans regulations.
The 911 GT3 R
is the successor to Porsches highly successful 911 3.8 RSR.
This water-cooled 996 based racer has proven to be a formidable challenger
in the GT category during the final stages of the 1999 season, which
marked its United States debut. The 3.6 liter six
cylinder engine develops in excess of 400 horsepower and drives through a GT2 six-speed
gearbox equipped with external cooling, pressurized lubrication, and a limited slip
differential. The carbon fiber bodywork, combining light weight and strength, makes
maximum use of current aerodynamic principles to provide excellent grip with minimum drag.
The chassis of the 911 GT3 R comes completely equipped with the necessary
components to comply with current sanctioning body regulations. Fitted, from the
factory, with a fuel cell, externally adjustable shock absorbers, spherical bearings at
suspension mounting points, electric power steering, and 380 mm., four pistons/caliper
brakes, Porsches newest offering will be a "turn key" race car.
The resources of the engineering and production departments at the Weissach facility
are totally committed to the production of a sufficient number of GT3 Rs for private teams
to mount a multi-car assault for Daytona 2000.
|
